Geosynthetics

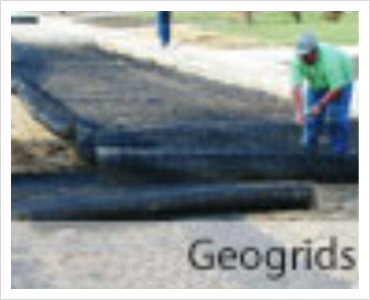

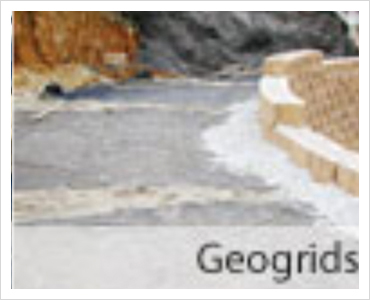

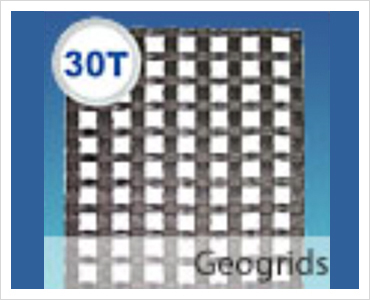

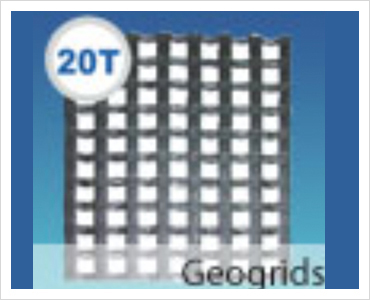

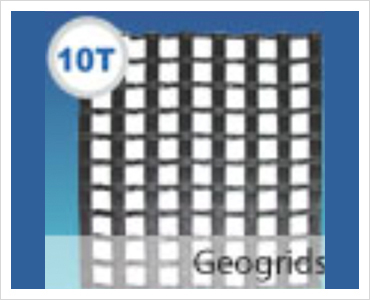

– Geogrids
The reinforcement matrix material which is manufactured by polymer resin coated after knitting with high strength and low elongation industrial polyester yarns, has excellent creep behavior and durability in civil engineering applications.
- Feature :
Pave a site by minimizing the use of the land in the road and cutting.
Prolong the life of the road by preventing the crack in the road.
Restrain the contamination due to preventing the damage of waterproof sheet
by the differential settlement in the reclaimed land of disposal.
Prevent a crack and sliding in the structure like retaining wall and extend
the life of structure.
- Application :
Rail and railroad – reinforcement of asphalt and base of road
Embankment and slope – reinforcement of soil dam,slope and repair of slope destroyed.
Retaining wall, bridge – reinforcement of retaining wall, joining on gabion
work under bridge.
Basic field – reinforcement of soft soil and pile foundation.
Structure – reinforcement of cement and concrete of the structure.
Reclaimed land for disposal – reinforcement of collecting facillity of sewage,
the reclaimed land for waste.

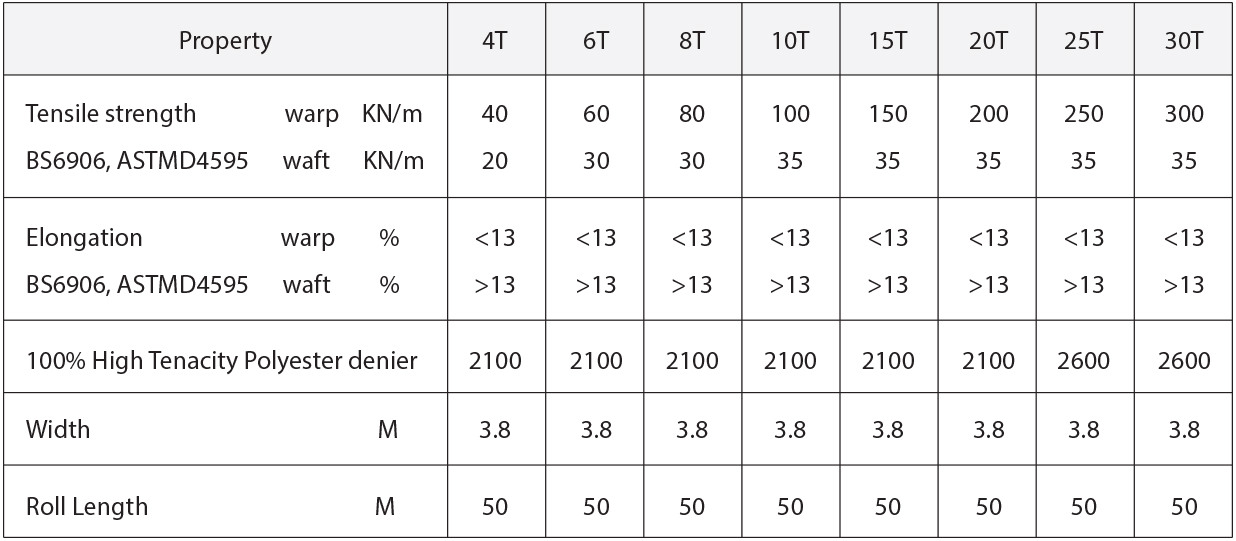

Materials : Polyester + PVC Coating
Maximum Width : 3.8M
Available Tensile Strength : 4MT ~ 110MT
Packaging : 50M/Roll

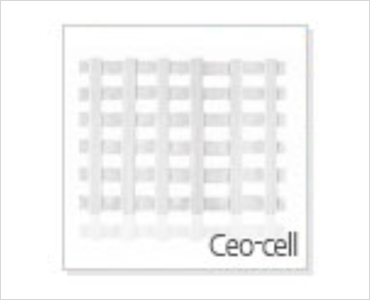

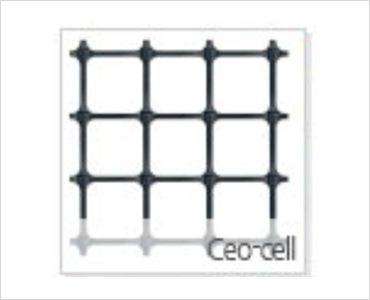

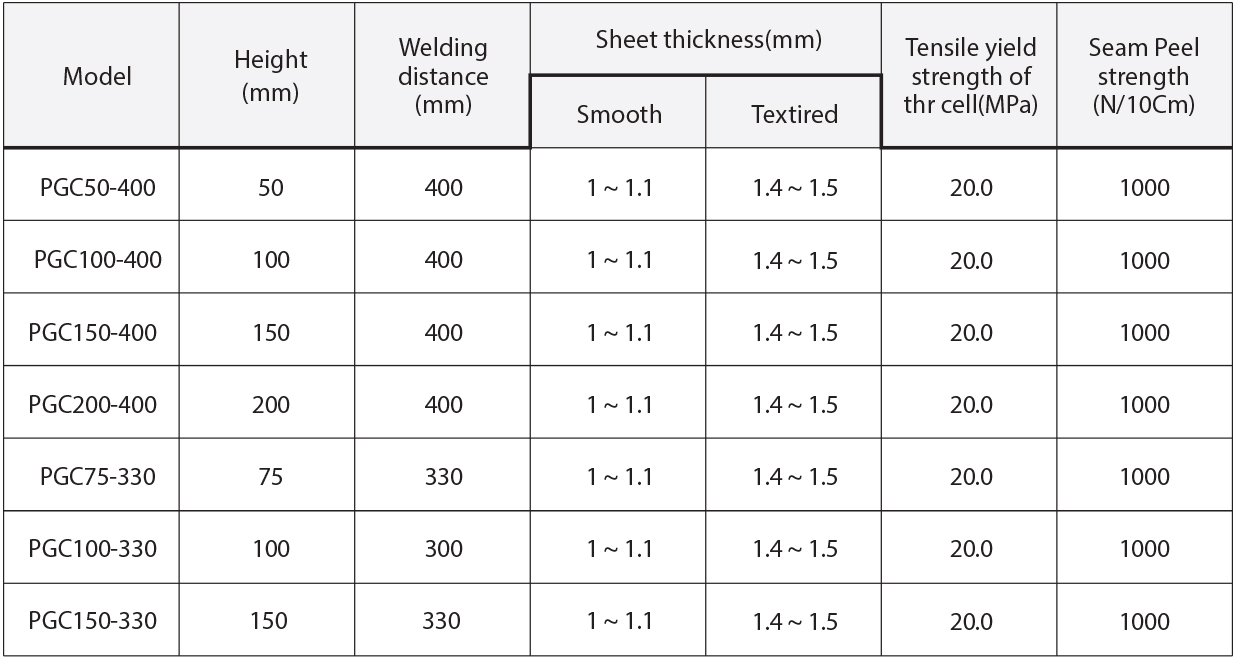

– Geo-cell
Structure:
Geo-cell is a net-shaped cell structure made by welding high intensity thermoplastic sheet.
It is flexible and folded during transportation, stretching out and being filled with stone or concrete during service.
Forms into structure with powerful lateral confinement and rigidity.
Functions :
Geo-cell can be used as cushion coat to strengthen the loading capacity of weak ground.
Geo-cell can be paved in slope as slope protection structure.
Geo-cell can be used to build the support block structure.

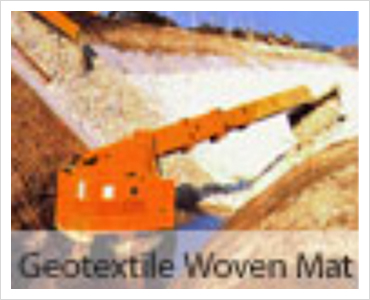

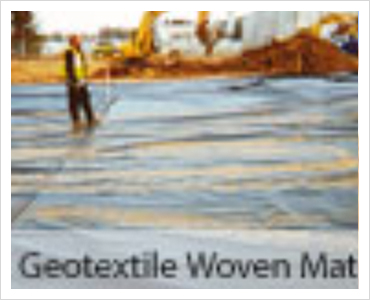

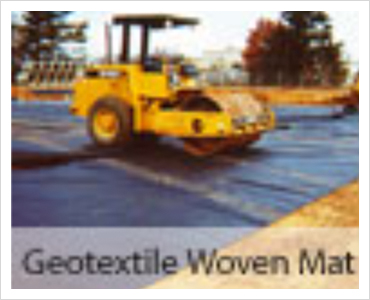

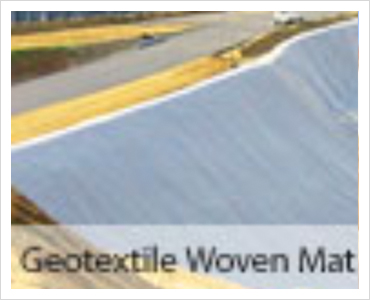

– Geotextile Woven Mat
This product is a mat for civil works, in order to get reinforcement, improvement, separation of weak soil.
* Polyester Mat (PET)
This is woven by high density of polyester filament yarn and equivalent direction of plain to get the same tensile strength between the length and width direction.
The tensile elongation is between 15~30% and used to improve/establish the industrial area and road on the weak soil.
* PP Mat (PP)
This is to be spreaded on the base woven solidly by polypropylene flat yarn.
This product is mainly used for separating sand mat and weak soil strata. Its maximum tensile strength is 10 Ton/m.
With strength against chemical agents and light specific gravity (0.96), it improves working efficiency.
Features :
High work efficiency,
High tensile strength per weight unit
Outstanding resistance against hard weather conditions and chemicals.
Its light specific gravity increases submerging speed and helps underwater
installation of mat.
Applications :
Reinforcement of the weak foundation.
Protection of the foundation from uneven or partial subsidence.
Filtering function to protect the sand from being flushed away.
Enabling transit of the heavy construction equipments on weak foundation.

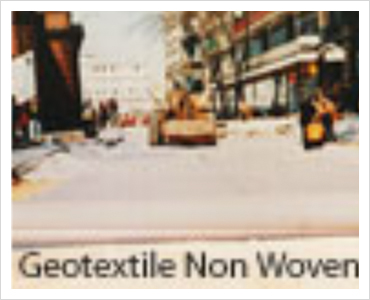

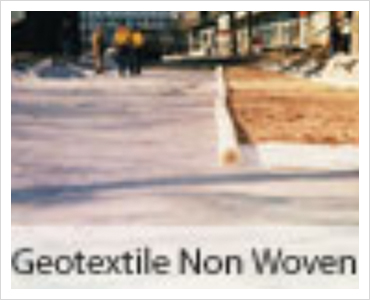

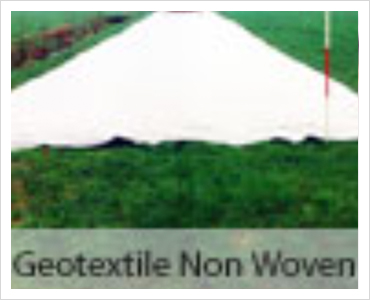

– Geotextile Non Woven Fabric
This Product is a non woven geotextile needle punched by polyester filament fiber for use in civil works such as embankment, revetment, closing trenches flow, tunnel.
Features :
Superior performance in all types of Heat Environments
High Strength, High Uniformity and Soft Handle
Chemical Resistance, Ultra Violet Stability,
Durable to all types of abrasion
Applications :
Quilting, Furniture, Wall paper and Window coverings
Lamination applications such as Secondary carpet backing,
medical laminates, fabric softer substrates, filtration media
and various industrial application such as Wire harness
Agricultural uses including weed mat and seed protectorMaterial : 100% polyester

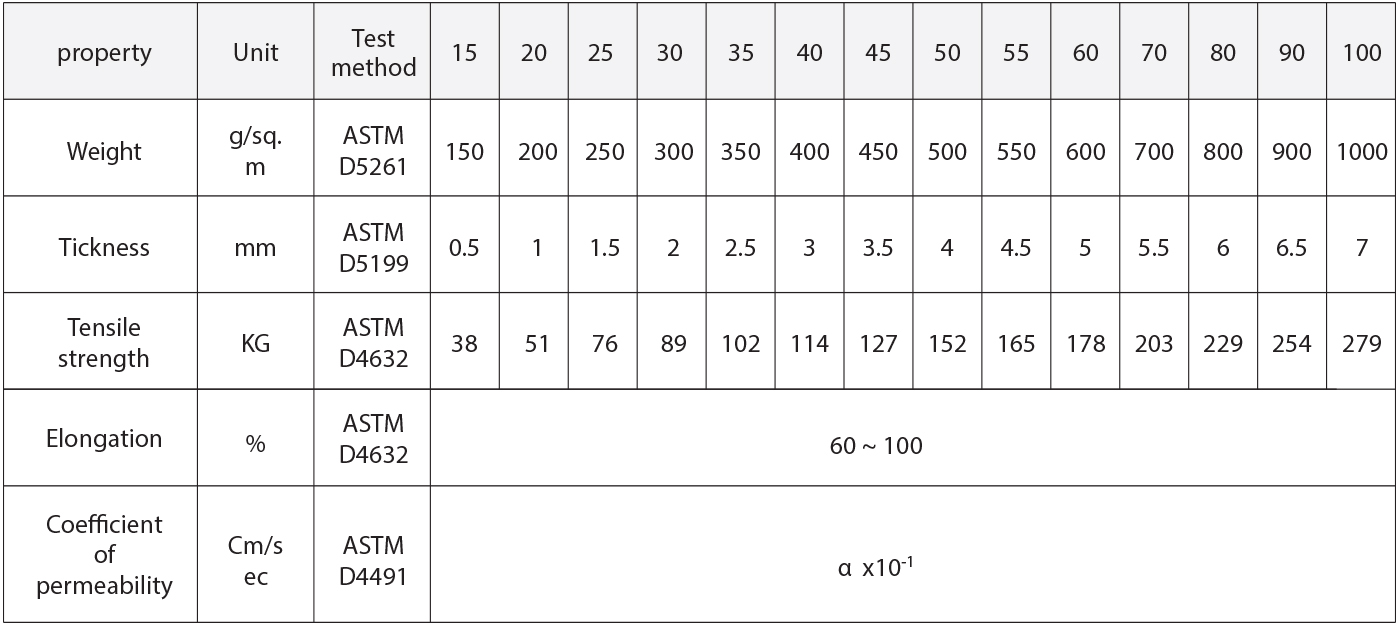

Maximum Width : 4.2M
Weight : 150g ~ 1,000g/SQ.M

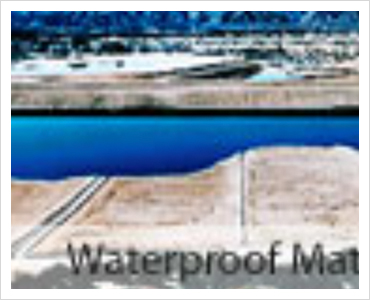

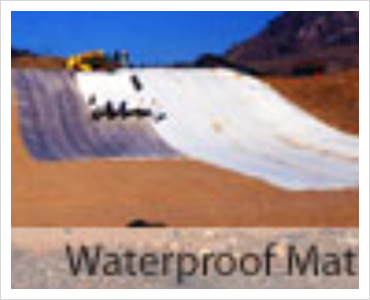

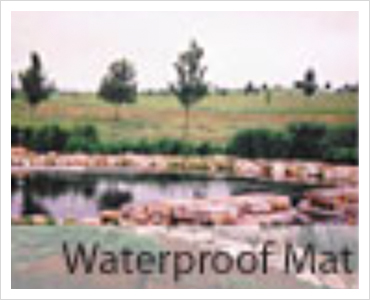

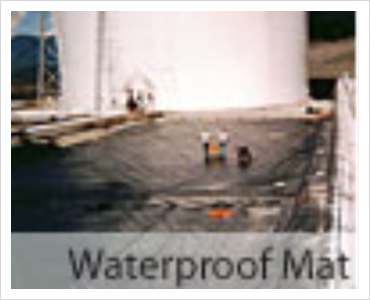

– Waterproof Mat
Waterproof Mat is a geotextile integrated with the water intercept sheet and non woven geotextile. Its non woven geotextile prevents a damage by the sharpened stone, roots and disposal, furthermore ; the friction increased between banking averts the sliding and smoothly drains the sewage.
It is a product which can be used as semi-permanent without corrosion in soil, in order to prevent the cases, such as leaking, increasing water content, contamination of soil and underground water by sewage of waster reclaimed land.l.
* Waterproof Mat’s bonding method
As per the following figure ; waterproof mat is bonded with melting the part of polyethylene on the both ending side in a double line by automatic melting machine, excluding non woven geotextile and woven mat for the use of reinforcement, and also the interval of bonded part should be generally 5mm more.
